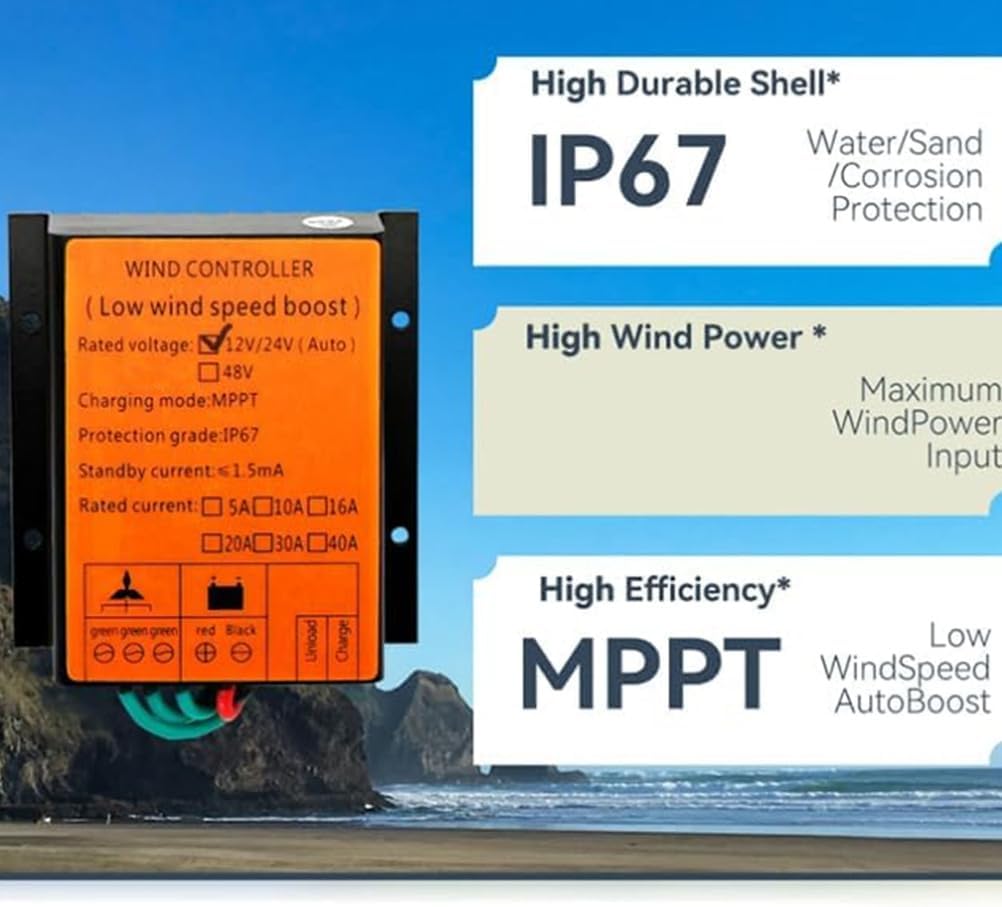

6000W IP67 Waterproof Controllerwind Turbine Charge Controller 12V/24V/48V Auto MPPT Low Wind Speed Boost Wind Regulator for Wind Power System Battery Charging,Yellow,12V
-
Detail
Spec:
Item Type: Wind Generator Controller
Rated application power: 6000W
Fit for Voltage: DC12V 24V 48V 220V
Material: Aluminium Alloy
Charging Mode: MPPT
Proof Level: IP67
Standby Current: 3.6mA
Display Method: Diode Indicator
Rated Current: 40A
Discharge Method: PWM Electrodeless Noiseless Discharge
Guard Method: Battery Overcharge, Overload, Wind Limiting, Automatic Brake
Performance: MPPT Power Point Tracking Mode Charging
How to Use:
1. Connect the thick red wire from the controller to the positive terminal of the battery.
2. Connect the thick black wire from the controller to the negative terminal of the battery.
3. Connect the three green wires from the controller to the three output wires of the wind turbine.
Package List:
1 x Wind Generator Controller -
