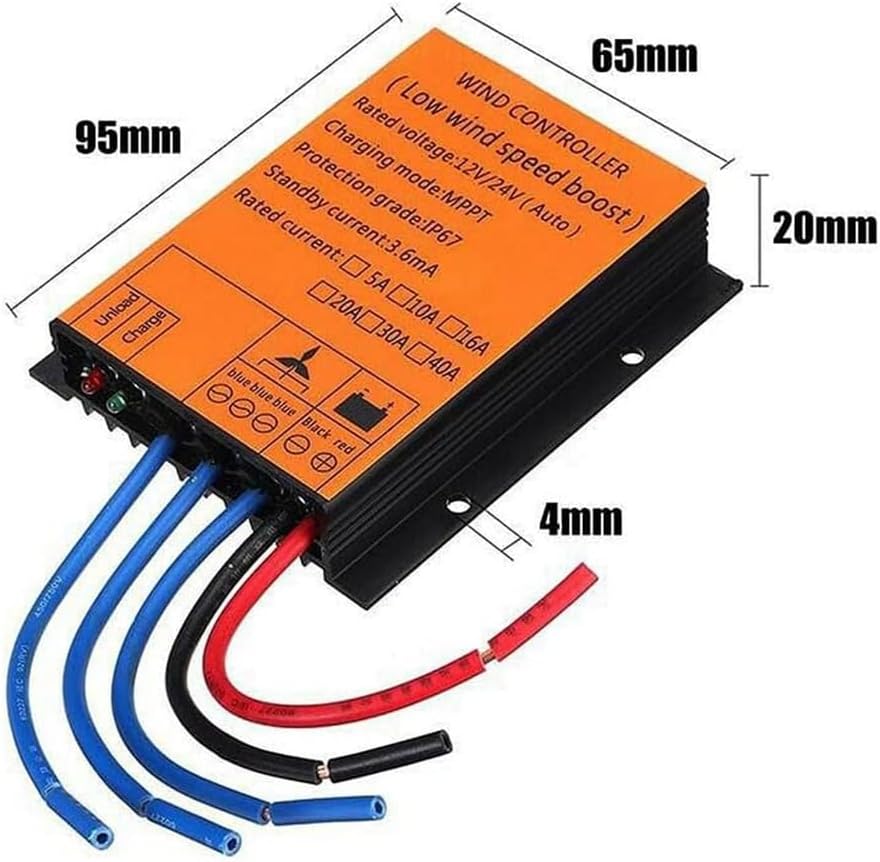

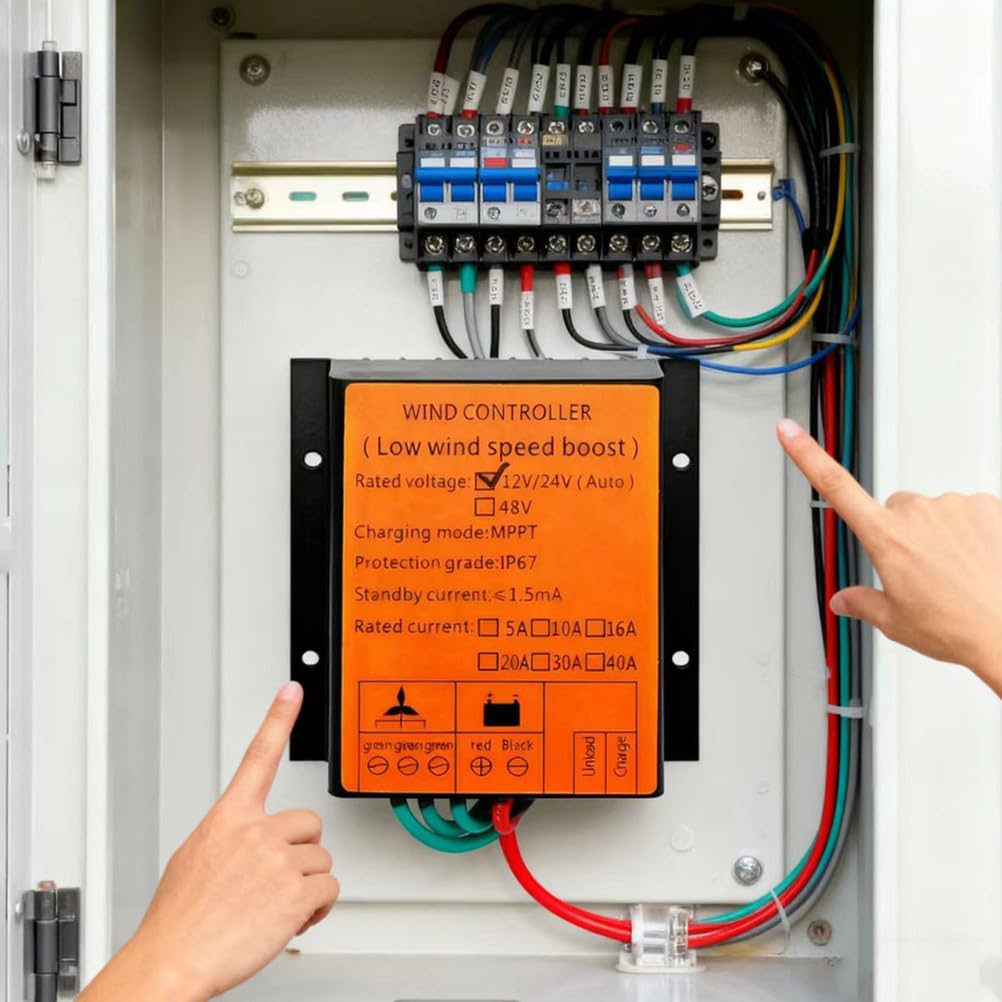

MPPT Wind Turbine Controller, 12V 24V 48V 220V 40A Wind Turbine Generator Controller 300W-1000W Wind Power Regulator with Multi Protections,Yellow,12V

✔ MPPT Control Method: This wind generator controller adopts the MPPT (high power point tracking) control method, which ensures that the wind turbine can the battery at low wind speed and low rotational speed, and also improves the wind turbine's power generation utilisation rate by 90% under the sa
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Spec:
    Item Type: Wind Generator Controller
    Rated application power: 300W-1000W
    Fit for Voltage: DC12V 24V 48V 220V
    Material: Aluminium Alloy
    Charging Mode: MPPT
    Proof Level: IP67
    Standby Current: 3.6mA
    Display Method: Diode Indicator
    Rated Current: 40A
    Discharge Method: PWM Electrodeless Noiseless Discharge
    Guard Method: Battery Overcharge, Overload, Wind Limiting, Automatic Brake
    Performance: MPPT Power Point Tracking Mode Charging

    How to Use:
    1. Connect the thick red wire from the controller to the positive terminal of the battery.
    2. Connect the thick black wire from the controller to the negative terminal of the battery.
    3. Connect the three green wires from the controller to the three output wires of the wind turbine.

    Package List:
    1 x Wind Generator Controller
