Home / 1000W Grid Tie Inverter, 36V Solar Power Converter with MPPT Pure Sine Wave, 110V AC Output Intelligent Cooling Fan Inverter for Home, School & Commercial Grid-Connected PV Systems

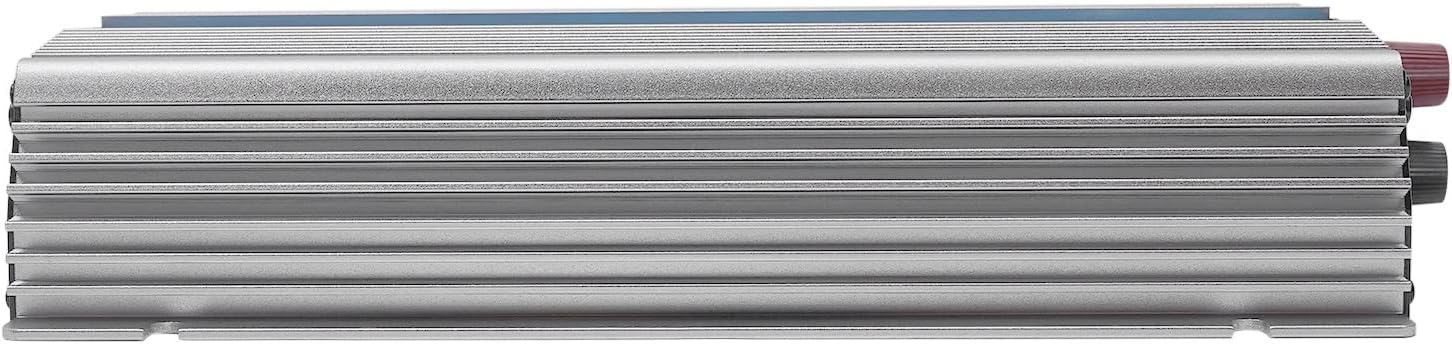

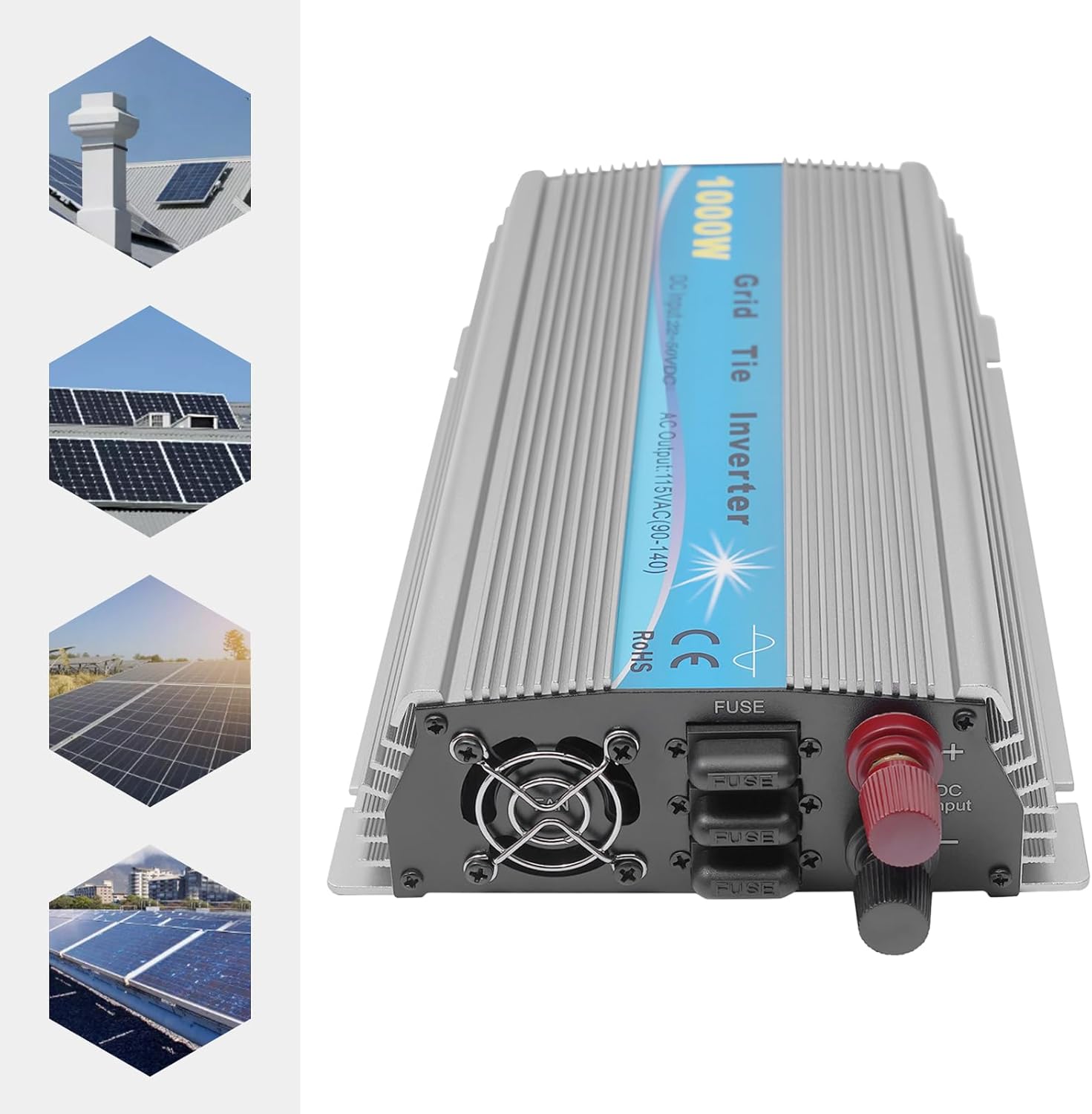

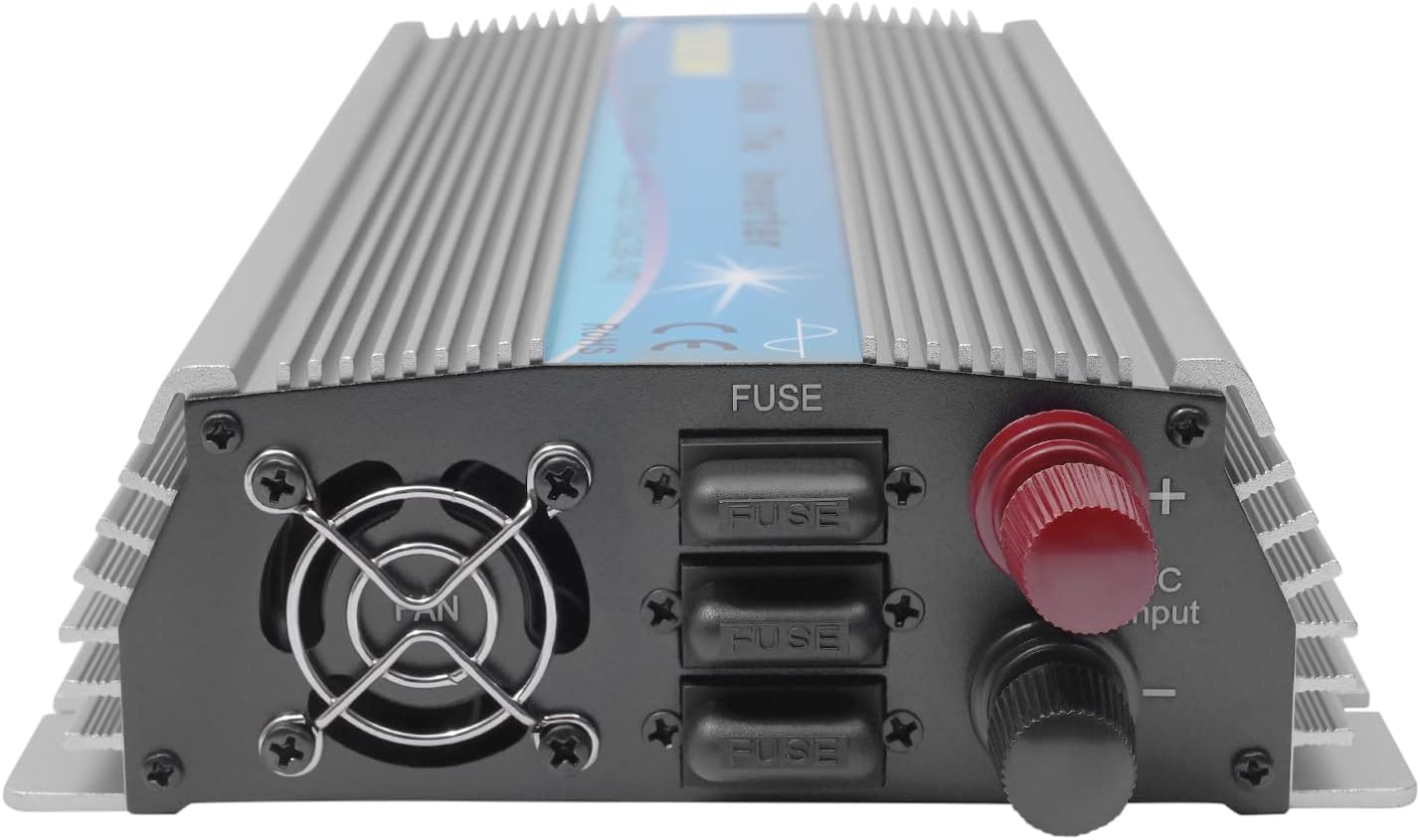

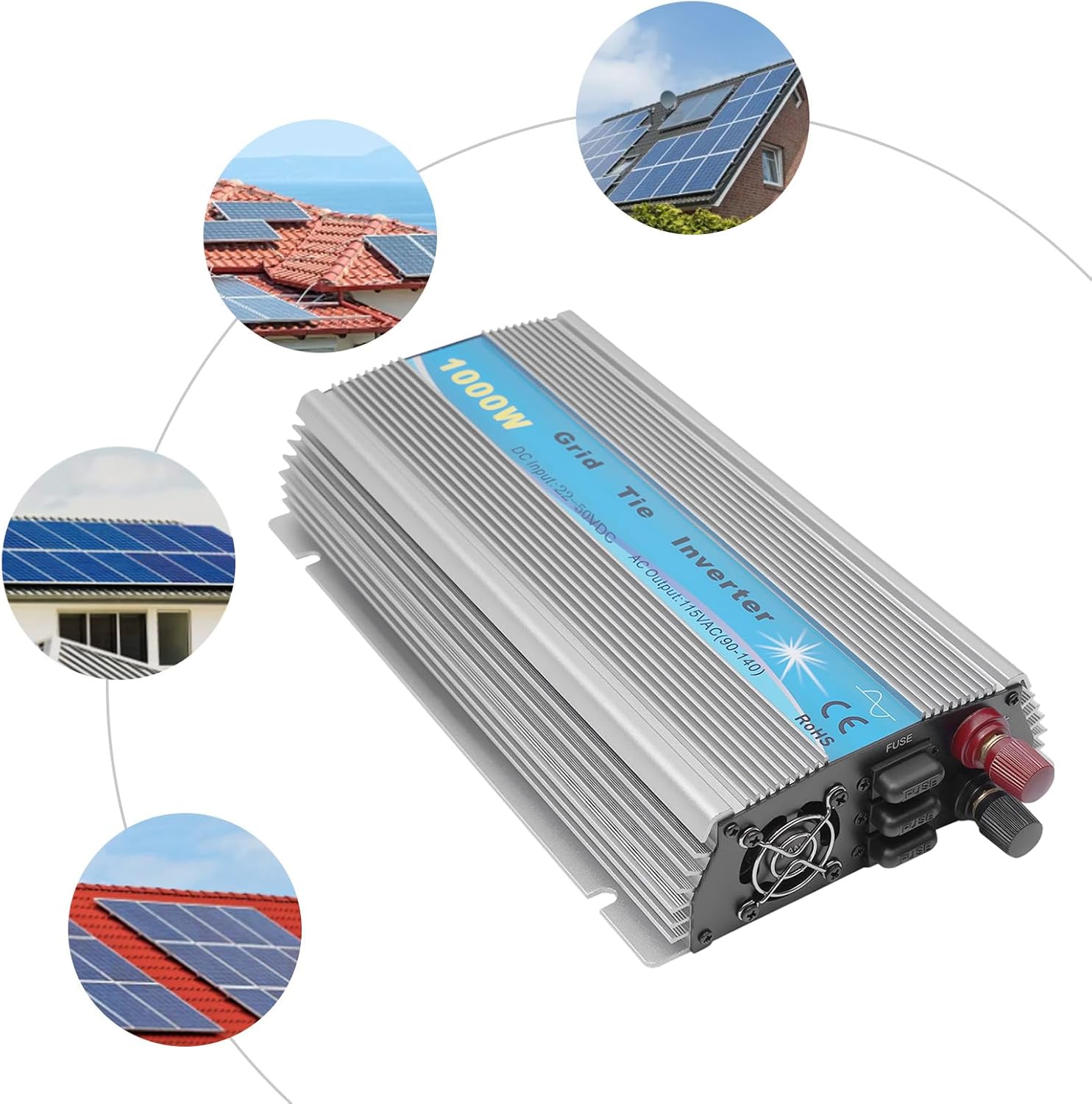

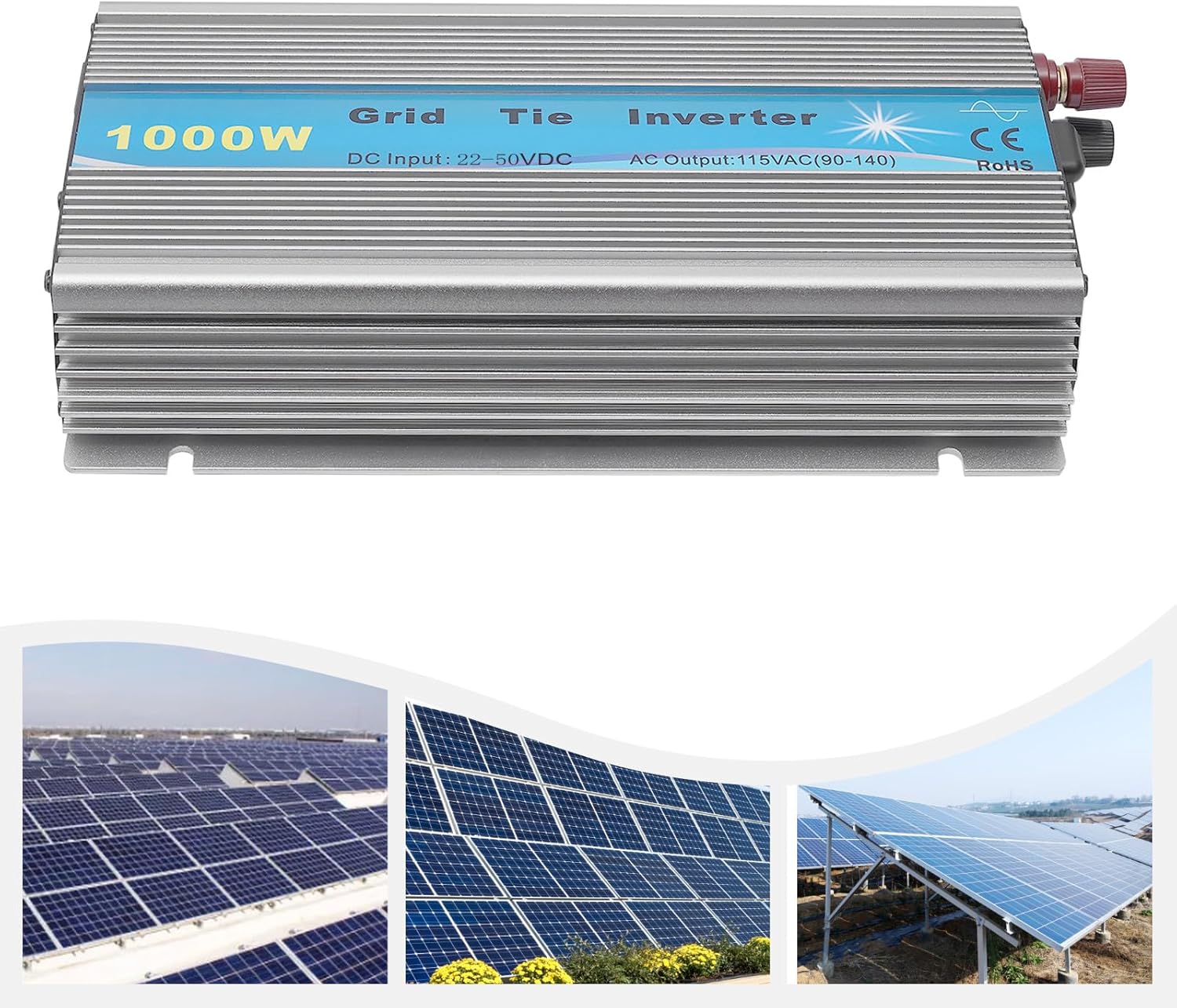

1000W Grid Tie Inverter, 36V Solar Power Converter with MPPT Pure Sine Wave, 110V AC Output Intelligent Cooling Fan Inverter for Home, School & Commercial Grid-Connected PV Systems

Premium Build: Crafted from aluminum alloy with imported industrial components for rust resistance, durability and long-term reliable use
High Efficiency: Unique circuit design, isolated transformer and MPPT tech deliver over 99% efficiency with stable maximum power locking
Pure Sine Wave: Cle
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    ★Specification★

    Color: Silver

    Model: GTI1000W

    Material: Aluminium Alloy

    AC Output Power:1000W

    Maximum AC Output Power:1050W

    AC Output Voltage: 110V(AC 90V-140V)

    DC Input: 22-50VDC

    Frequency Range: 48- 62Hz(Self-adaption)

    MPPT Range 26-38V

    Scope of Application: 36V Solar Panel and 36V Battery

    Package Size: 35*20*10cm/13.8*7.9*3.9in

    Product Size: 21*16.5*5.3cm/10.6*6.5*2.1in

    Gross Weight: 4kg/8.8lbs

    Net Weight: 3.5kg/7.7lbs


    ★Package Included★

    1*Grid Tie Inverter

    1 Set* English Manual

    1*Warranty Card

    1*Power Cord

    All Accessories for Assembly


    ★Notes★

    1. Please note that the input and output voltage must be within the voltage range of the product.

    2. Please note that the output port of the inverter must be connected to the household power grid socket (civil single-phase power grid) through an AC power line so that the product can work normally!

    3. Please note that the PV input power is recommended to be greater than 20% of the rated power of the product.

    4. Please note that the Vmp of the solar panel must be within the MPPT range to ensure the best MPPT maximum power output.

    5. We recommend using 36V photovoltaic panels (VOC voltage between 26-50V) or 36V batteries as input power to obtain better output power.

    6. Please note that the DC terminal must be tightened, otherwise, the product may be damaged.

    7. Please note that the grid tie inverter cannot be used as off grid/stand alone solar system. The output needs to be connected to the grid power. And it can not supply power directly to the AC loads.

    8. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
