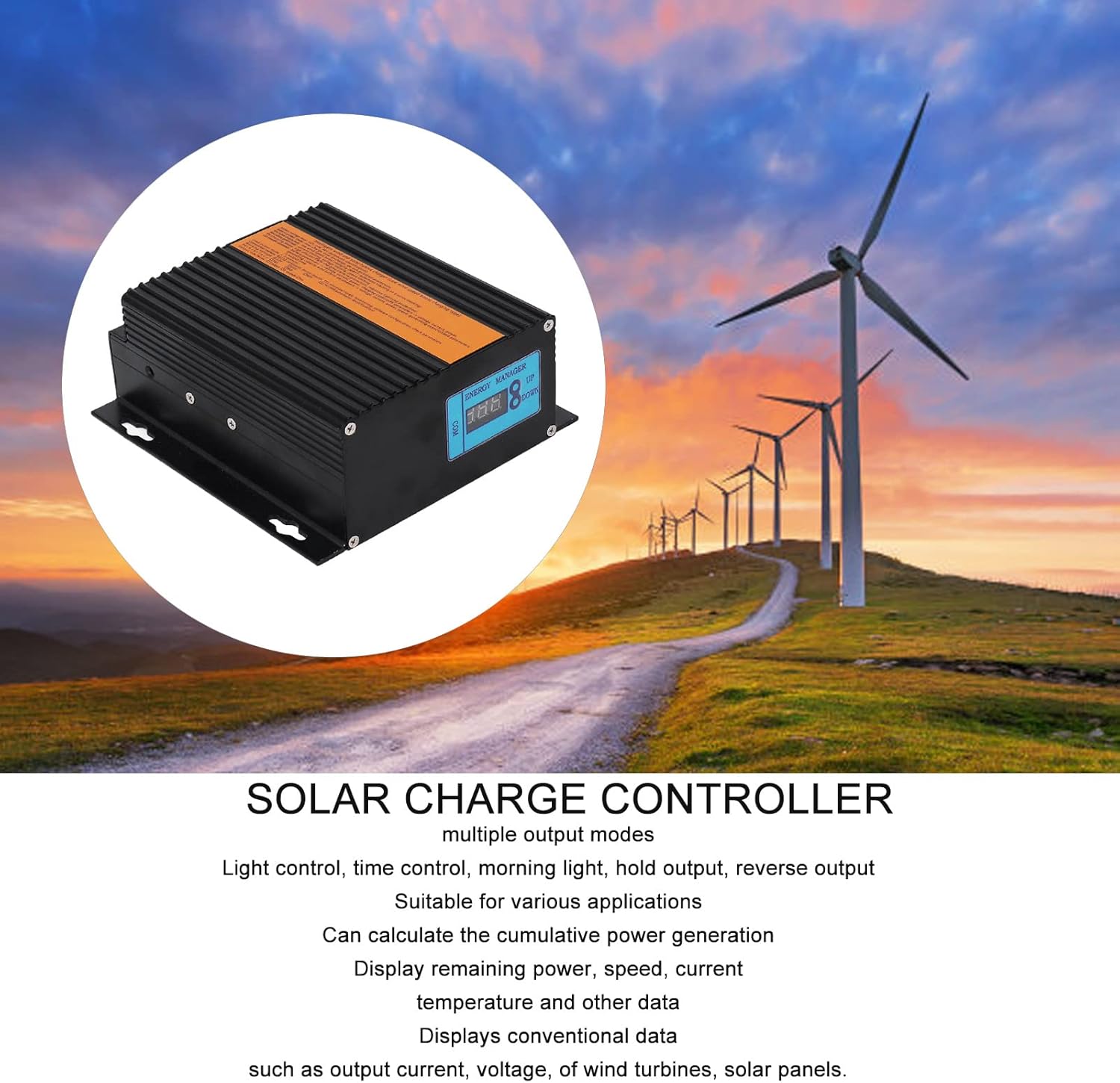

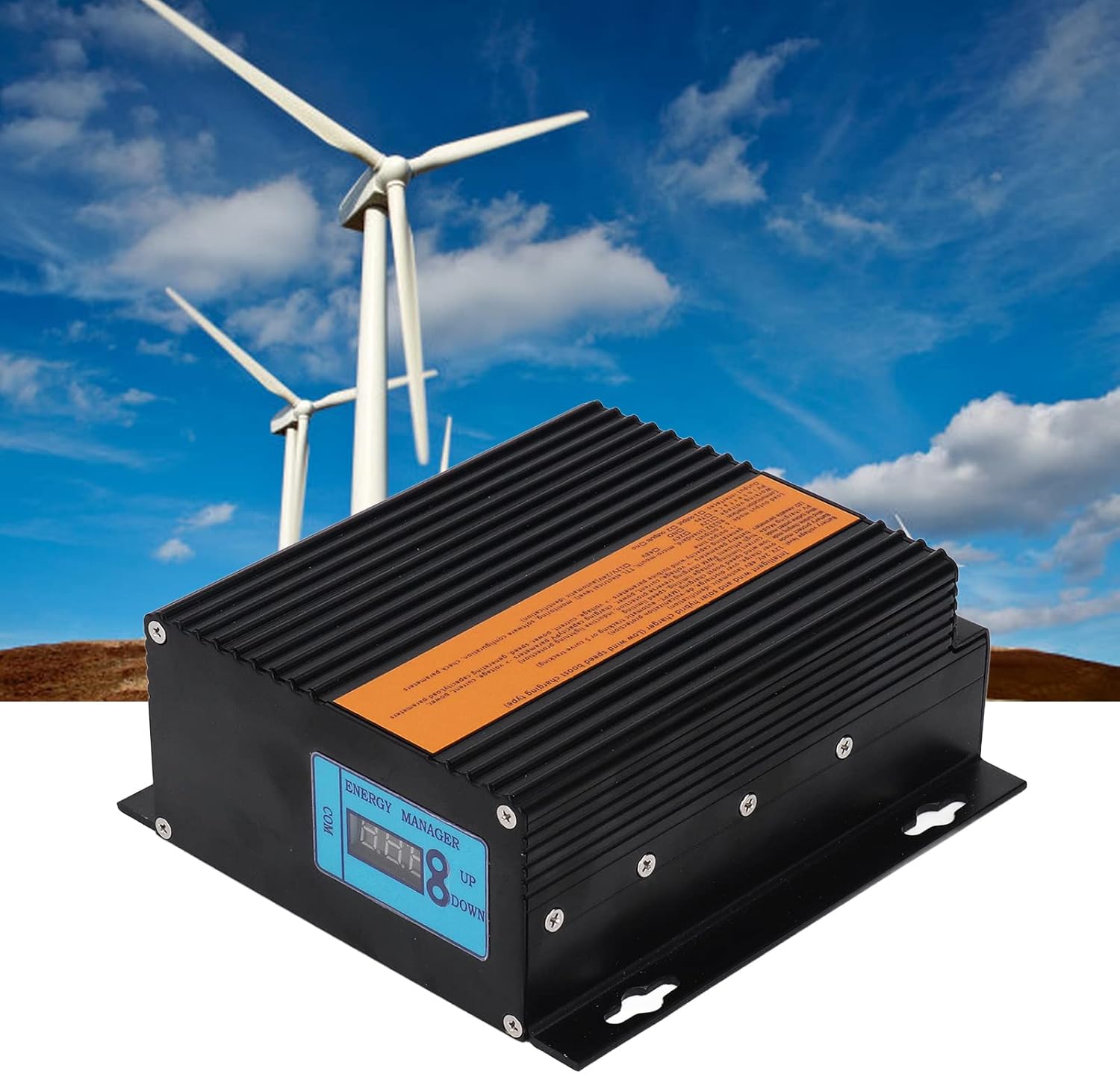

Wind Solar Hybrid Charge Controller 12V 100W PV Power, MPPT Solar Charge Controller - Waterproof Design, Multiple Output Modes, Ideal for Renewable Energy Systems (300w)

Item Type: Wind Solar Hybrid Charge Controller
Material: Aluminum Alloy
Rated Voltage: 12V
Photovoltaic Power: 100W
Ambient Temperature: -25℃ to +55℃
Protection Type: Protection, Solar Reverse Charging Protection, Battery Open Circuit Protection, Battery Reverse Connection Protection, Over Wind Speed and Over Voltage Soft Automatic Braking Protection, Overload Protection
Overvoltage Protection Point Voltage: 29.0V±0.2V (14.5V±0.2V)
Overvoltage Recovery Point Voltage: 27.5V±0.2V (13.7V±0.2V)
Undervoltage Protection Point Voltage: 21.0V±0.2V (10.5V±0.2V)
Undervoltage Recovery Point Voltage: 23.0V±0.2V (11.5V±0.2V)
Fan Input Port Parameters:
Port Rated Current: 20A dc (After Rectification)
Port Maximum Input Current: 25A dc (After Rectification)
Fan Speed Limit Power Generation Preset Speed: 500 Rpm (Can be Set)
Fan Current Limiting Power Generation Preset Current: 20A (Can be Set)
Fan Protection Method: Over Speed Protection, Over Current Protection, Induction Protection
Unloading Method: PWM Stepless Soft Unloading (Built in) or Manual Unloading Brake
MPPT Function: Boost MPPT Mode (Automatic Tracking or 5 Segment Curve Tracking)
MPPT Channel Input Current: 5A (Standard)
PV Input Port Parameters:
Applicable Photovoltaic Rated Power: 100W (12V)
Port Rated Input Current: 10A (Standard) - 30A (Optional)
Charging Voltage Drop: Less Than 0.2V
Photovoltaic Protection Method: Reverse Polarity Protection
Unloading Method: Open Circuit Unloading
Discharge Output Port Parameters:
Number of Output Channels: 2 Channels
Output Current Per Channel: 12A
Output Control Mode: Light Control, Time Control, Morning Light, Hold Output, Reverse Output
Other:
Display Mode: 3 Digit Digital Tube (LED) Display
Communication Method: RS232 (5V Level) (Standard), RS485, Short Distance Wireless RF (Optional)
Displayable Parameter Content:
Fan Input Voltage,
