Wind Solar Hybrid Charge Controller, MPPT 12V 100W, Aluminum Alloy Waterproof - Efficient Power Management, Multiple Output Modes, Ideal for Solar Panels and Wind Turbines (400W Wind Power)

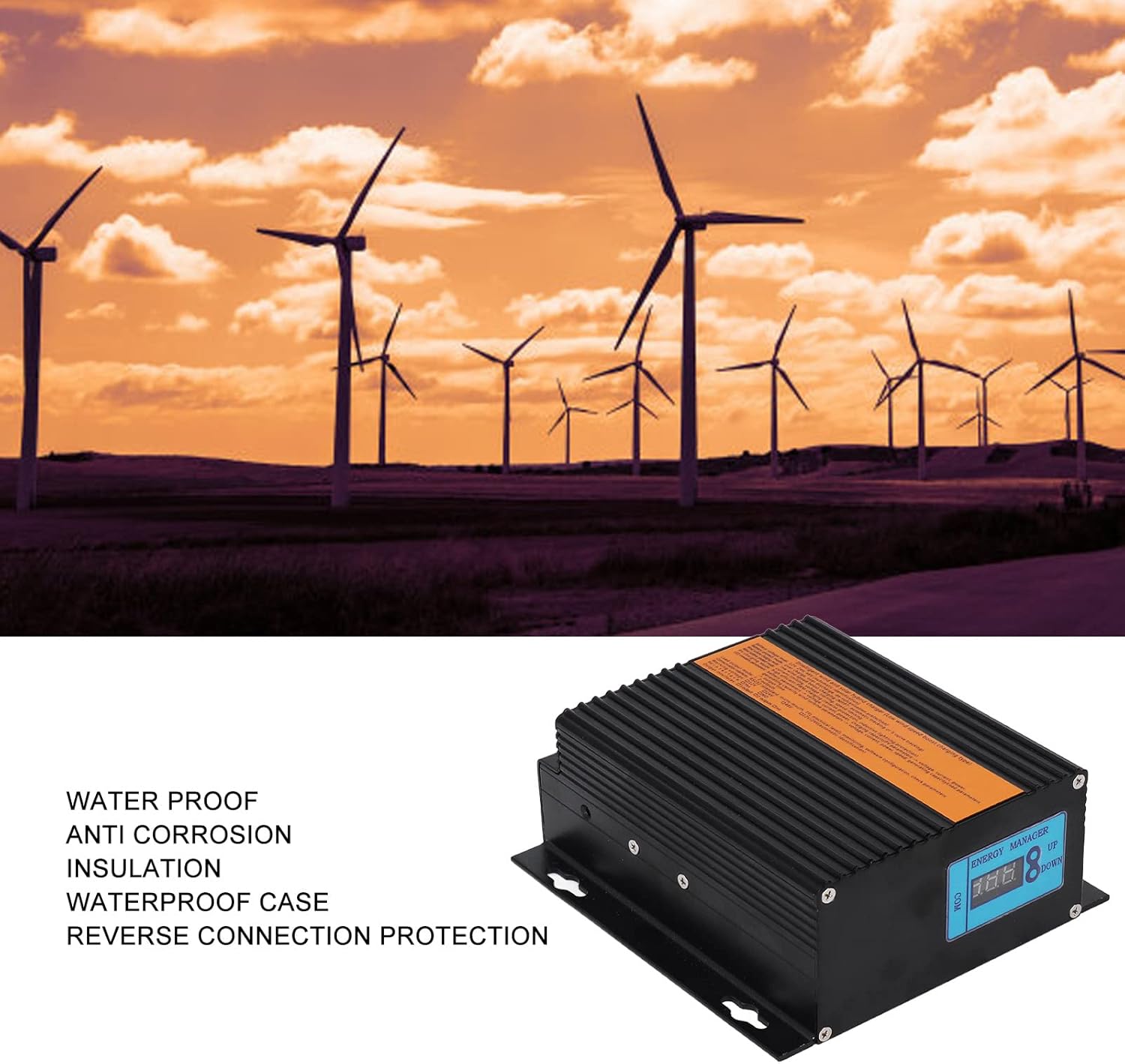

[Waterproof Circuit Design]: Features waterproof circuit boards and casing with and insulation protection, ensuring reliable durability in outdoor solar controller environments.
[Reverse Connection Protection]: Safeguards solar input from damage during accidental reverse connection, allowing cont
Quantity
ADD TO CART
BUY IT NOW
  • Detail


    Item Type: Wind Solar Hybrid Charge Controller
    Material: Aluminum Alloy
    Rated Voltage: 12V
    Photovoltaic Power: 100W
    Ambient Temperature: -25℃ to +55℃
    Protection Type: Protection, Solar Reverse Charging Protection, Battery Open Circuit Protection, Battery Reverse Connection Protection, Over Wind Speed and Over Voltage Soft Automatic Braking Protection, Overload Protection
    Overvoltage Protection Point Voltage: 29.0V±0.2V (14.5V±0.2V)
    Overvoltage Recovery Point Voltage: 27.5V±0.2V (13.7V±0.2V)
    Undervoltage Protection Point Voltage: 21.0V±0.2V (10.5V±0.2V)
    Undervoltage Recovery Point Voltage: 23.0V±0.2V (11.5V±0.2V)
    Fan Input Port Parameters:
    Port Rated Current: 20A dc (After Rectification)
    Port Maximum Input Current: 25A dc (After Rectification)
    Fan Speed Limit Power Generation Preset Speed: 500 Rpm (Can be Set)
    Fan Current Limiting Power Generation Preset Current: 20A (Can be Set)
    Fan Protection Method: Over Speed Protection, Over Current Protection, Induction Protection
    Unloading Method: PWM Stepless Soft Unloading (Built in) or Manual Unloading Brake
    MPPT Function: Boost MPPT Mode (Automatic Tracking or 5 Segment Curve Tracking)
    MPPT Channel Input Current: 5A (Standard)
    PV Input Port Parameters:
    Applicable Photovoltaic Rated Power: 100W (12V)
    Port Rated Input Current: 10A (Standard) - 30A (Optional)
    Charging Voltage Drop: Less Than 0.2V
    Photovoltaic Protection Method: Reverse Polarity Protection
    Unloading Method: Open Circuit Unloading
    Discharge Output Port Parameters:
    Number of Output Channels: 2 Channels
    Output Current Per Channel: 12A
    Output Control Mode: Light Control, Time Control, Morning Light, Hold Output, Reverse Output
    Other:

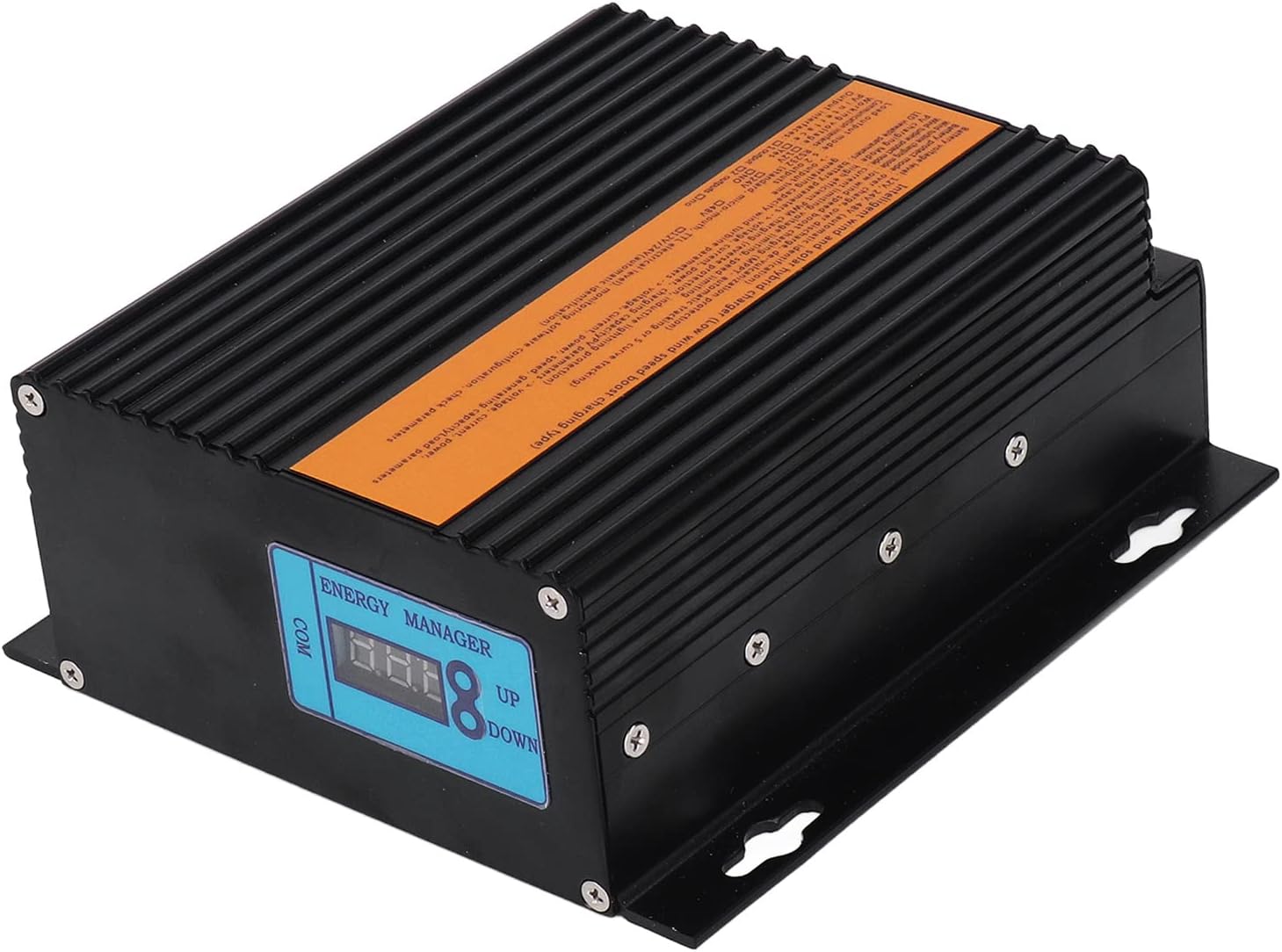

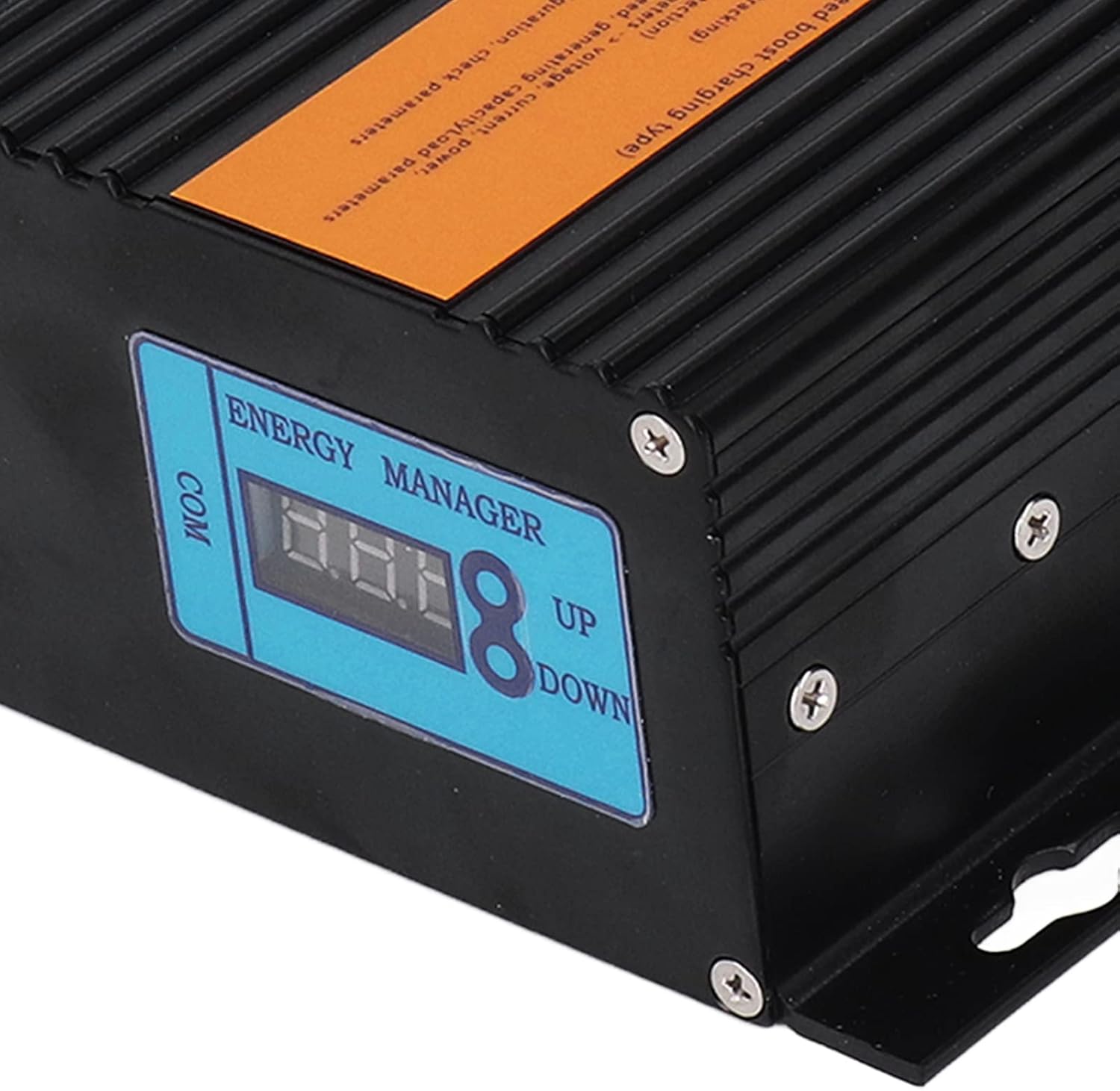

    Display Mode: 3 Digit Digital Tube (LED) Display
    Communication Method: RS232 (5V Level) (Standard), RS485, Short Distance Wireless RF (Optional)
    Displayable Parameter Content:
    Fan Input Voltage,
