Home / 1000W Solar Grid Tie Micro Inverter, Solar Power Inverters w/Heat Dissipation Holes MPPT DC 22-50VDC PV Input, Automatic Identification Power Inverters for Residential, Commercial Areas

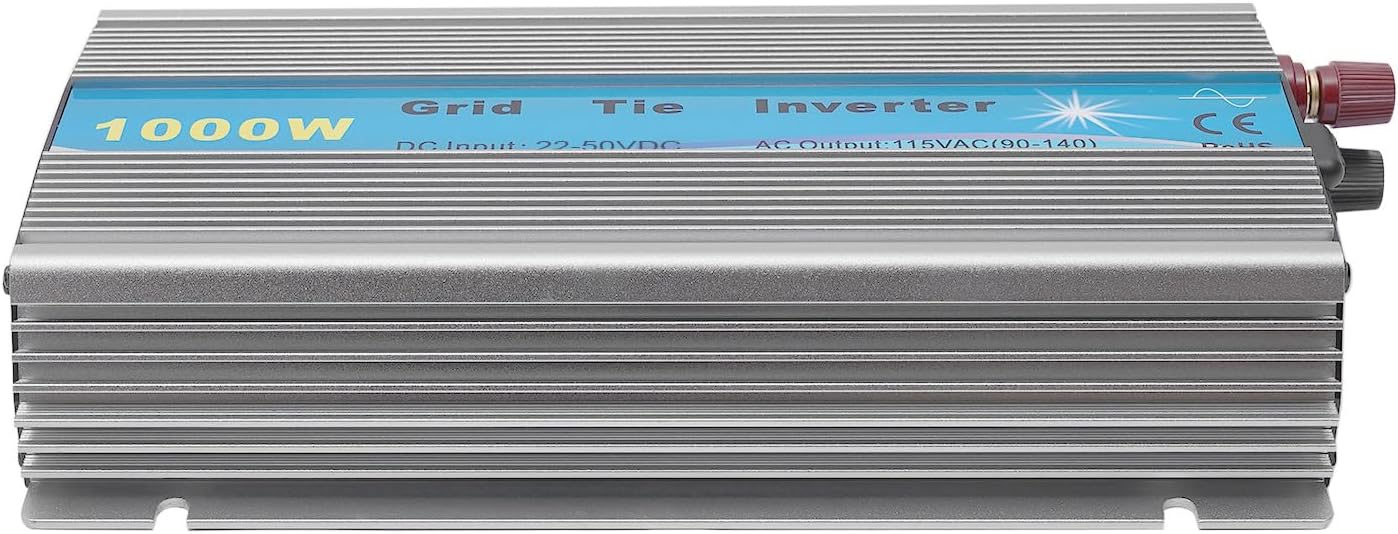

1000W Solar Grid Tie Micro Inverter, Solar Power Inverters w/Heat Dissipation Holes MPPT DC 22-50VDC PV Input, Automatic Identification Power Inverters for Residential, Commercial Areas

【High Efficiency】: The product adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking.
【Pure Sine
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Description

    This grid tie inverter can effectively convert sunlight into clean green energy. It uses imported industrial electronic components, innovative MPPT technology and an isolated high-frequency transformer to make the efficiency higher than 99%, which is a more responsive, and higher output efficiency in photovoltaic power generation application systems. Its powerful output can effectively generate electricity for you.

    Details

    Gaskets: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

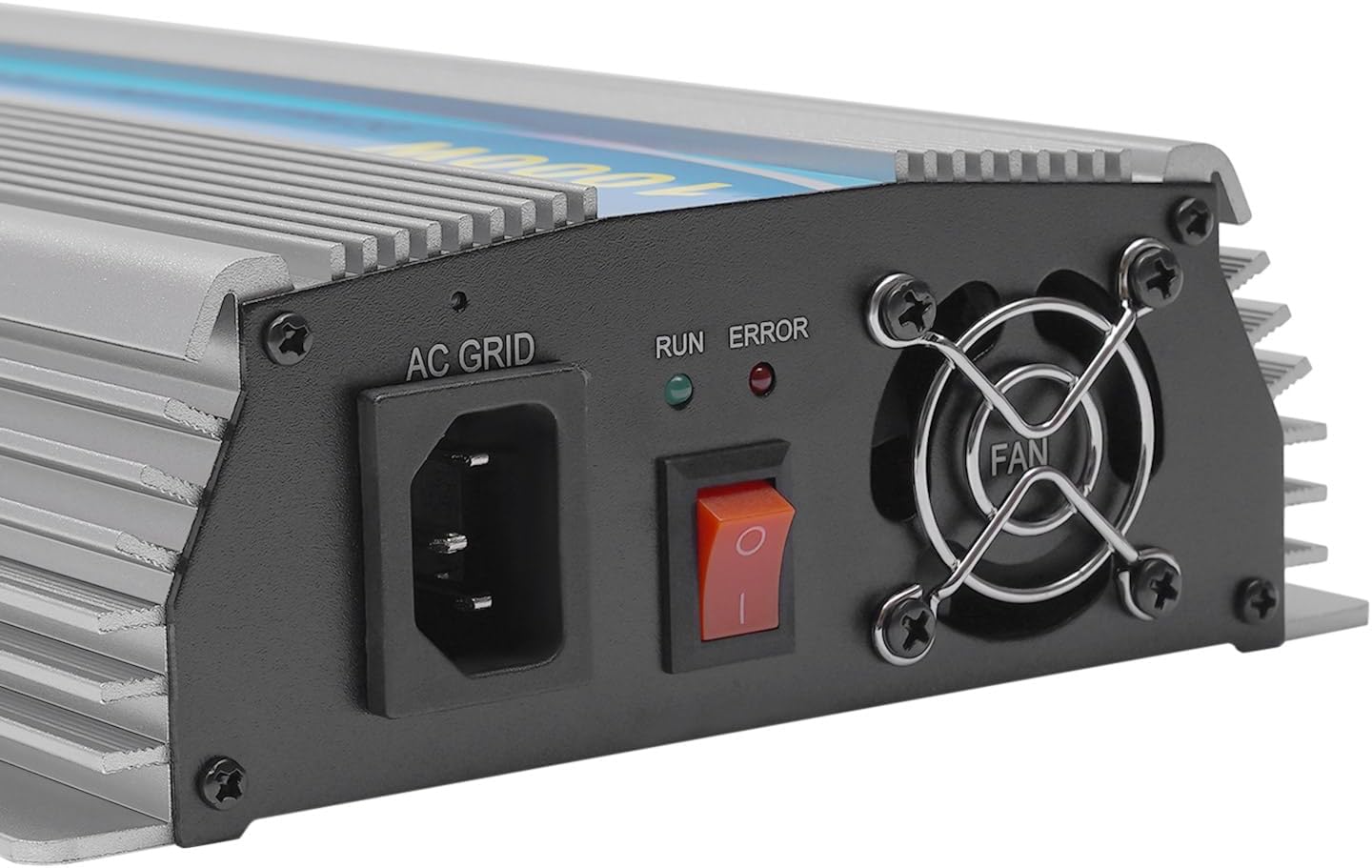

    Heat Dissipation Holes: The body has multiple heat dissipation holes, which help the machine to dissipate heat and enable it to run smoothly.

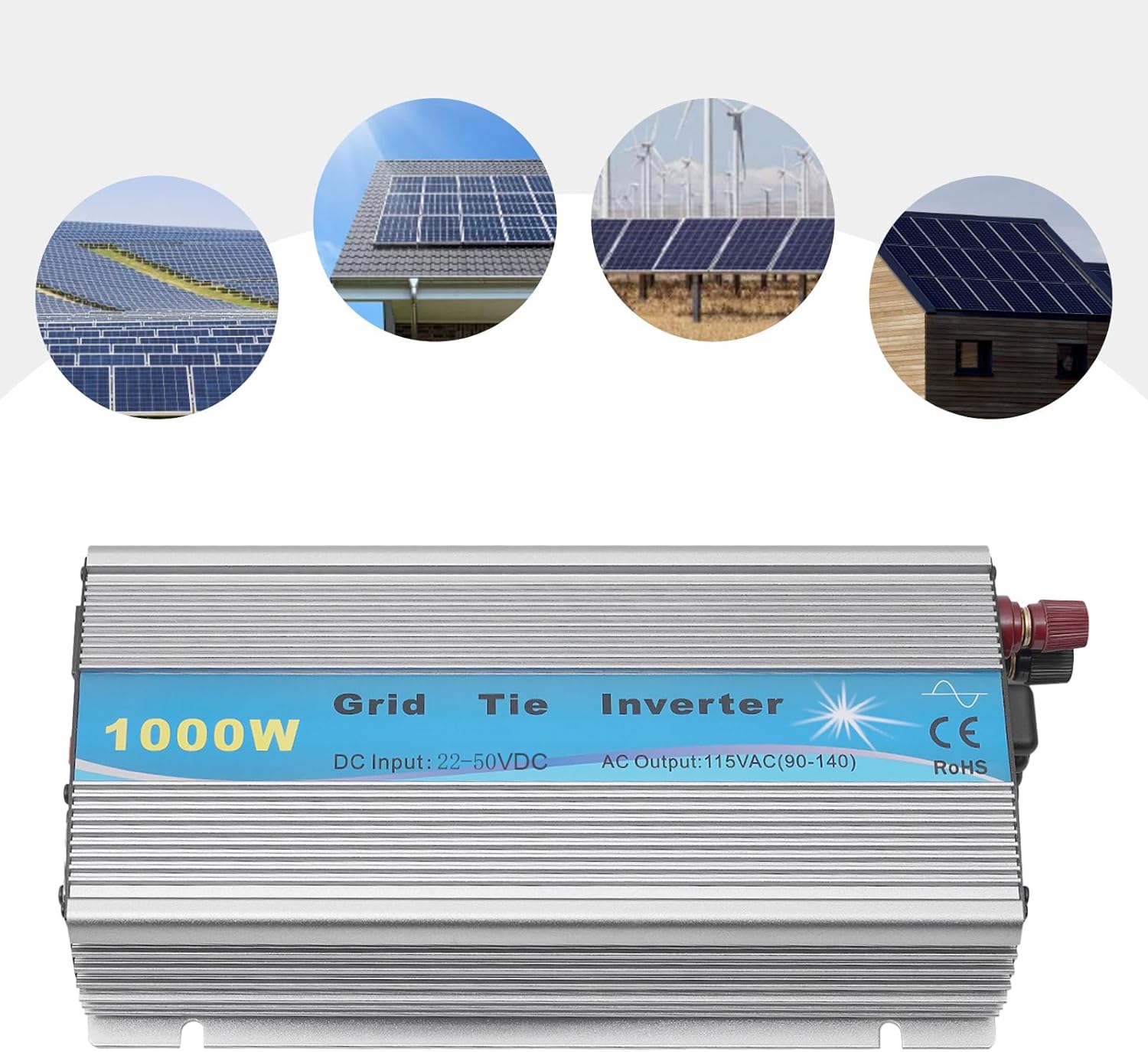

    Application

    It is very suitable for grid-connected power generation in schools, power stations and households. It is applicable to 36V solar panel and 36V battery.

    Specification

    Color: Silver

    Model: GTI1000W

    Material: Aluminium Alloy

    AC Output Power:1000W

    Maximum AC Output Power:1050W

    AC Output Voltage: 110V(AC 90V-140V)

    DC Input: 22-50VDC

    Frequency Range: 48- 62Hz(Self-adaption)

    MPPT Range 26-38V

    Scope of Application: 36V Solar Panel and 36V Battery

    Package Size: 35*20*10cm/13.8*7.9*3.9in

    Product Size: 21*16.5*5.3cm/10.6*6.5*2.1in

    Gross Weight: 4kg/8.8lbs

    Net Weight: 3.5kg/7.7lbs

    Package Included

    1*Grid Tie Inverter

    1 Set* English Manual

    1*Warranty Card

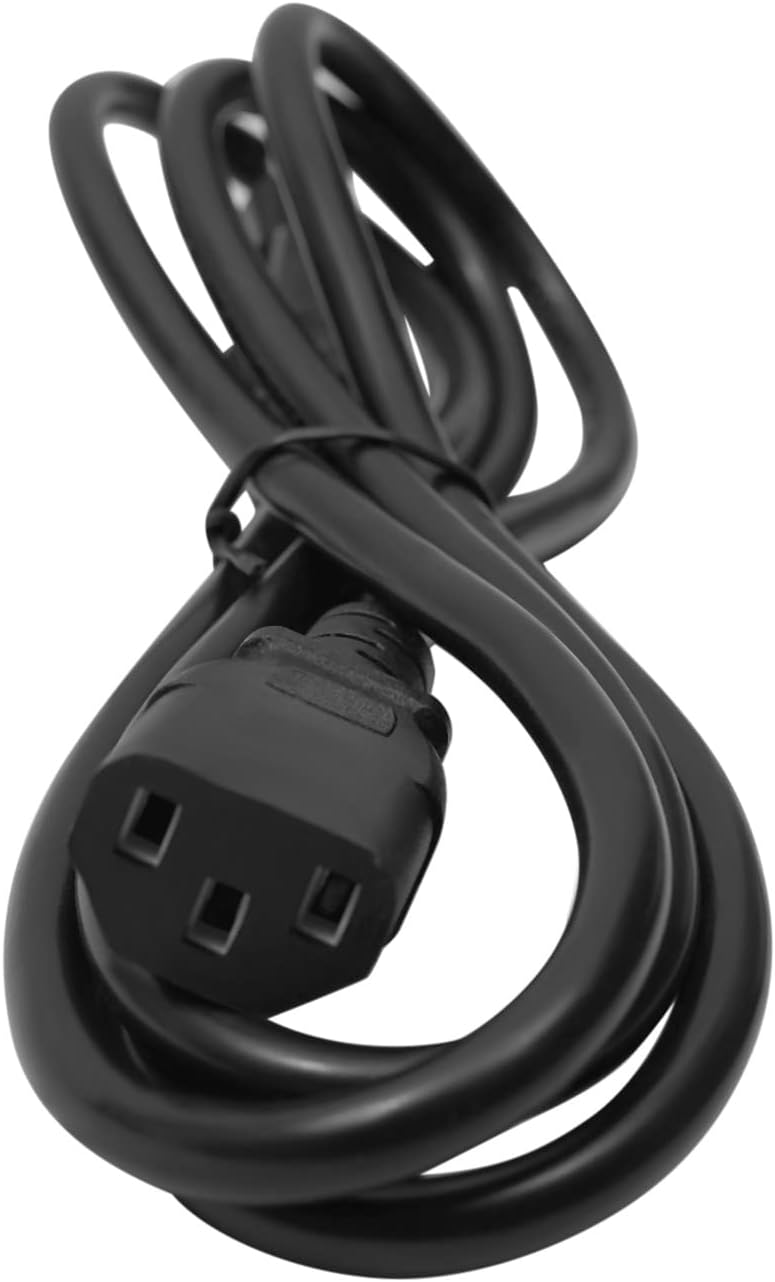

    1*Power Cord

    All Accessories for Assembly
