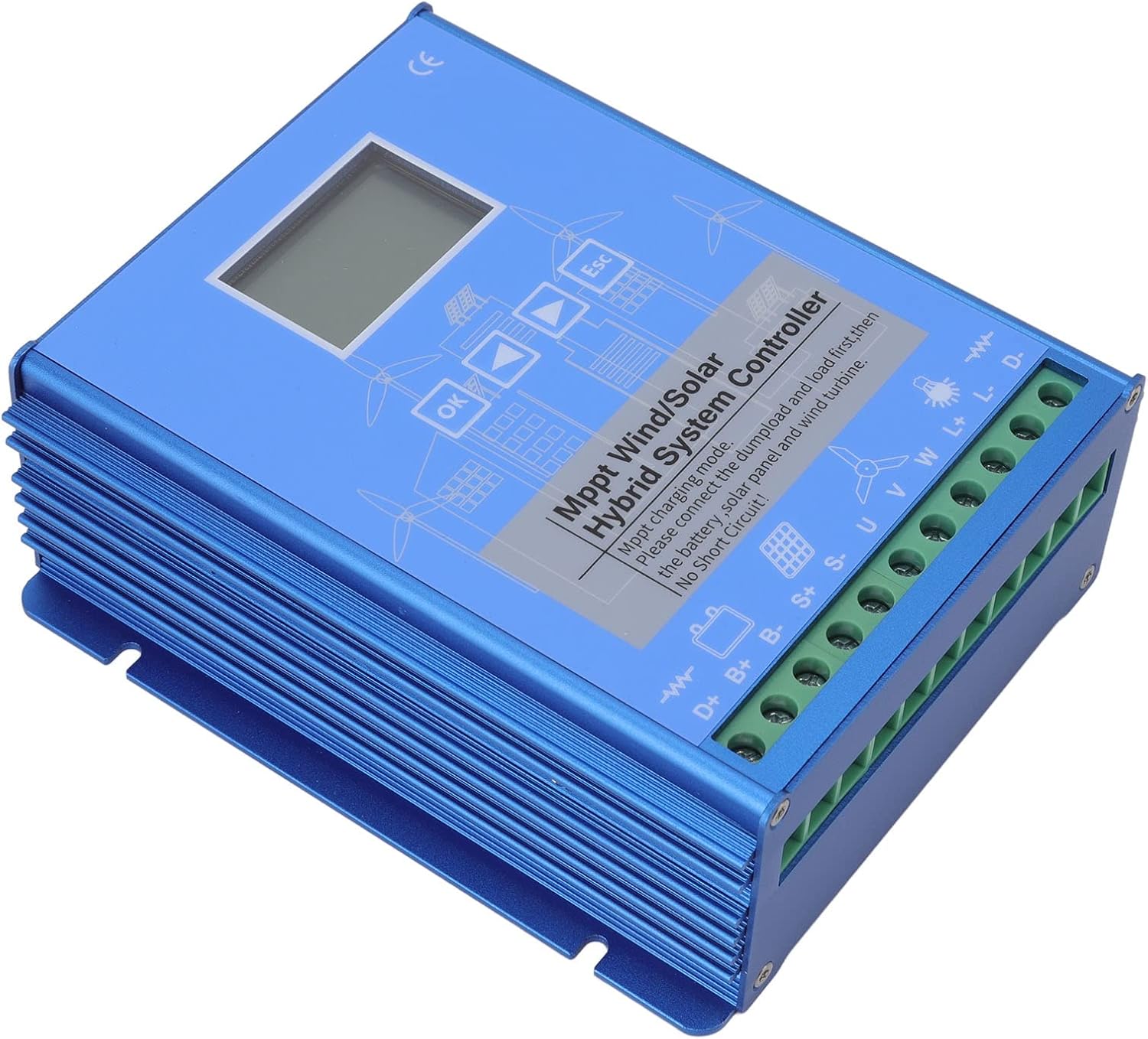

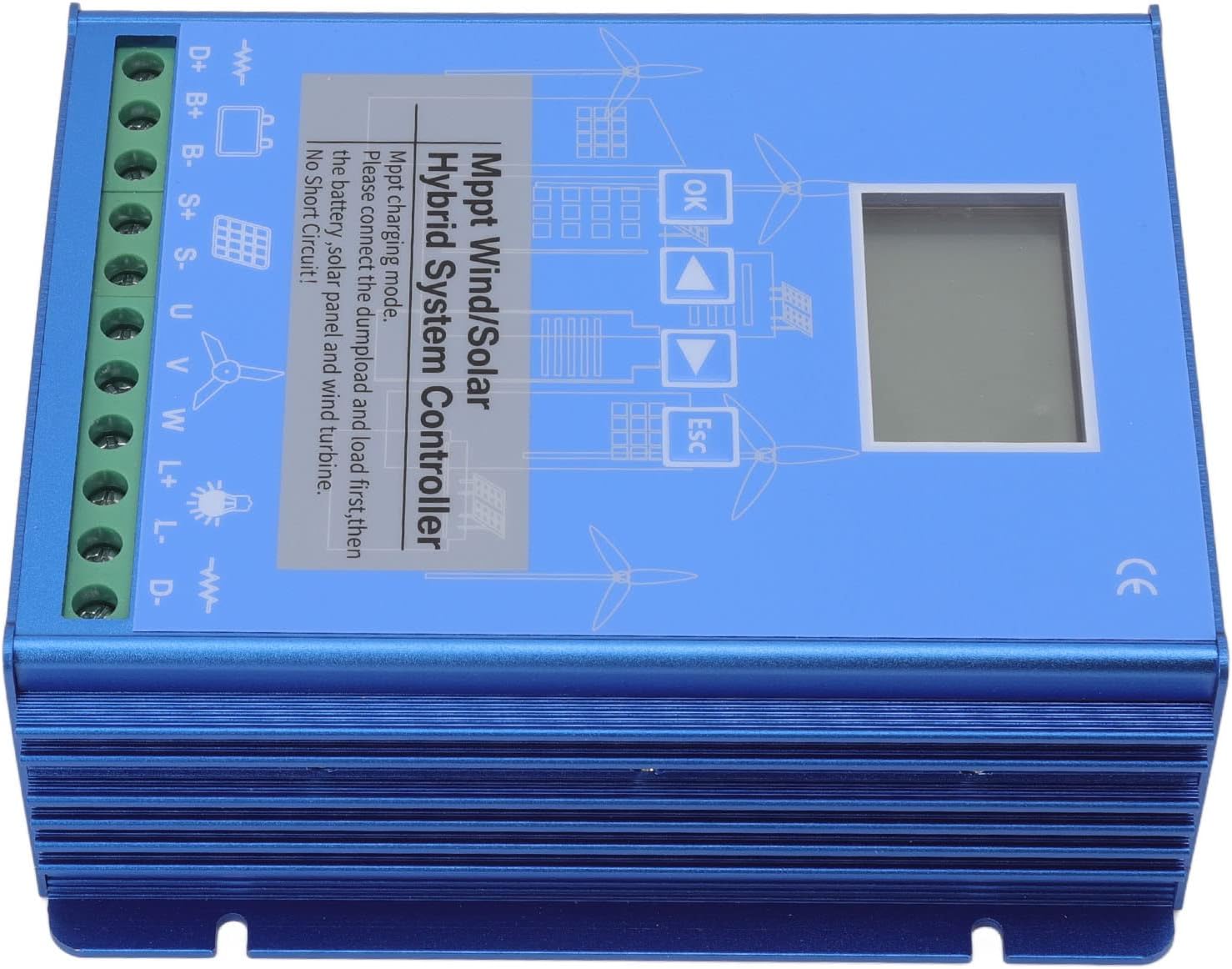

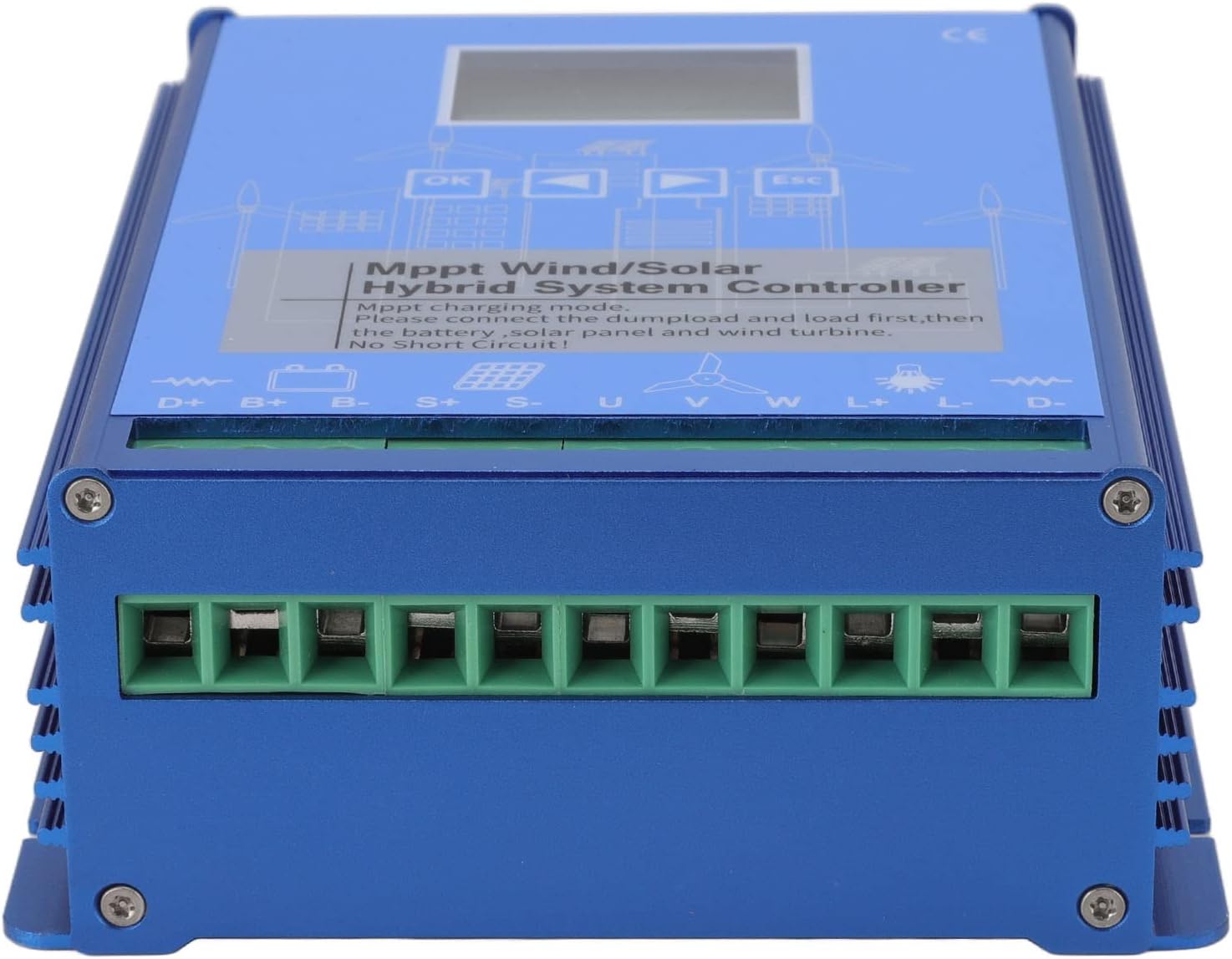

Respicefinem Mppt Wind Solar Controller 24v 48v LCD Screen Off Grid Generation Systems Gpi 48280 (GPI-48280)

Item Type: Wind Solar Hybrid Charge Controller
Material: ABS
Host Size: Approx. 168 x 145 x 61mm / 6.6 x 5.7 x 2.4 in
Shell Color: Blue

Product Introduction: GPI series wind and solar hybrid controller is specially designed for small off grid wind and solar power generation systems; an intelligent controller integrating wind and solar charging control
Characteristic:
1. The fan is charged in the breeze, and the MPPT boost is intelligently adjusted.

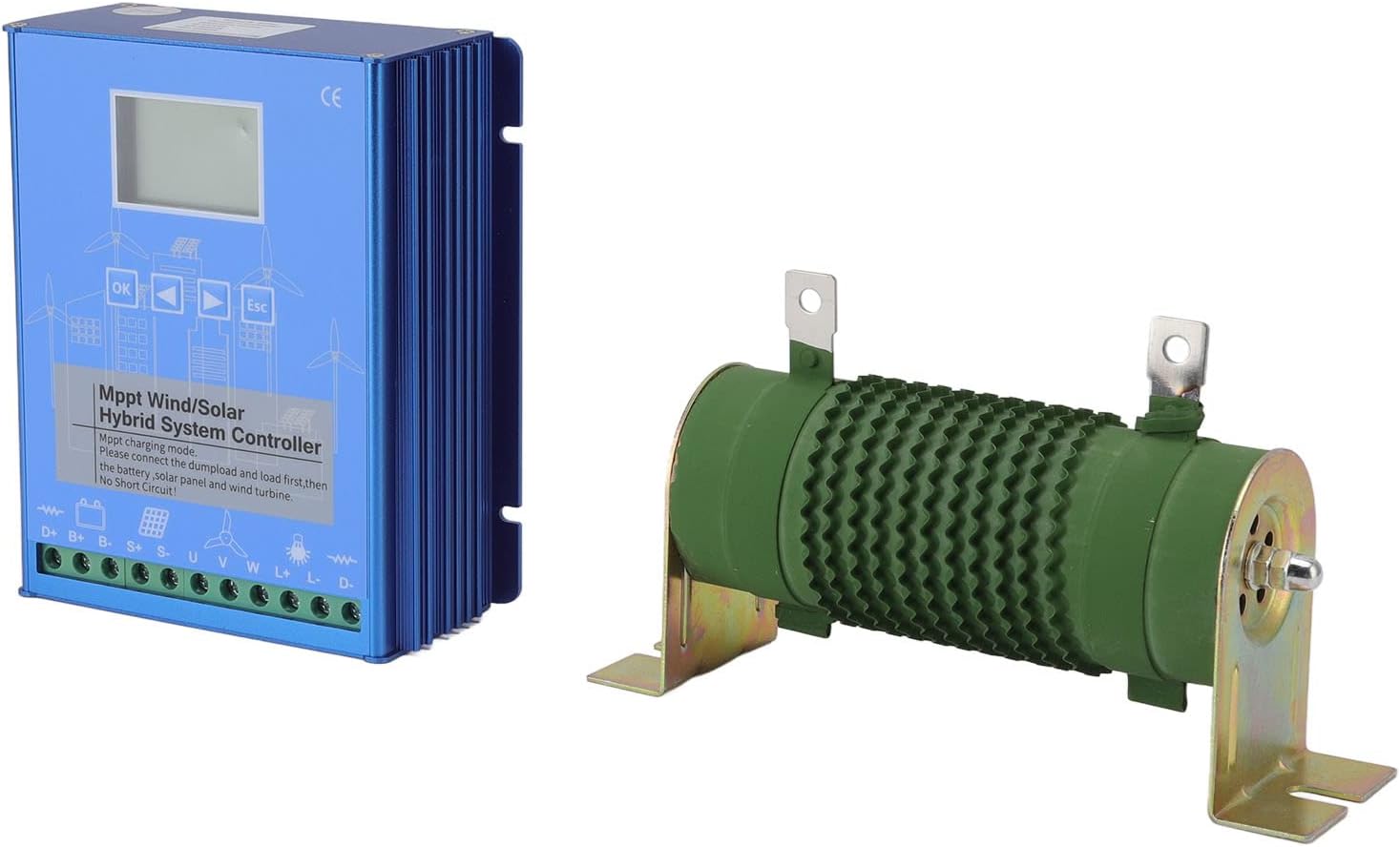

2. Fan PWM stepless unloading, external unloading device, solar energy intelligent disconnection charging.
3. The controller has dual power supply function: battery + solar power supply.
4. The LCD displays information such as battery, fan, solar energy, load voltage and current, and some parameters can be set.
5. The load output can be adjusted in various working modes.
6. High performance and stable chip control.
7. The internal circuit board of the controller is sprayed with three proof paint to prevent dust, and static electricity
System Rated Voltage: 24V 48V automatic identification
Model GPI-48220 GPI-48280
Battery Voltage 24V 48V 24V 48V
Wind Turbine Rated Power 600 1200 800 1600
PV Module Rated Power 500 1000 600 1200
Maximum Input Voltage: Wind turbines No Load Current (DC): 0.05A
The Controller Takes Power: Battery or photovoltaic panel to take power
Control Method: Fan MPPT boost charging function, PWM unloading function, PWM overcurrent limiting function
Load: A variety of working modes are available, pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
Display Mode: LCD, Chinese display, clear and intuitive
Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection
